ImageIR9300
Features
  • Cooled FPA photon detector with (1,280 × 1,024) IR pixels
  • Frame rate up to 390 Hz, GigE Vision interface
  • Snapshot detector, internal trigger interface
  • Extremely short integration times in the microsecond range
  • Pixel resolution up to 2 μm
  • Thermal resolution up to 0.02 K
  • Made in Germany

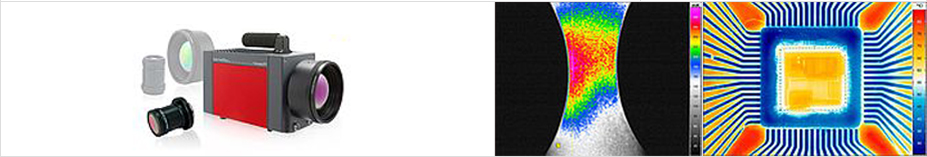

ImageIR® with microscopic lens

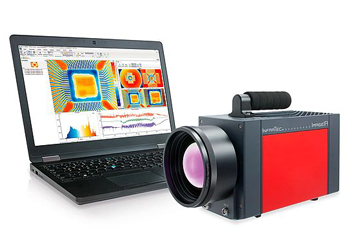

Controlling and acquisition
software for facility protection

Microscopic thermography

Specifications
Spectral range (2.0 ... 5.5) μm
Pitch 15 μm
Detector InSb
Detector format (IR pixels) (1,280 × 1,024)
Selection mode ITR / IWR
Detector cooling Stirling cooler
Temperature measuring range (-40 ... 300) °C; up to 2,000 °C*
Measurement accuracy ± 1 °C or ± 1 %
Temperature resolution @ 30 °C 0.025 K; typically 0.02 K
Frame rate (full screen mode/half screen mode/ quarter screen mode/sub-frame) Up to 106/200/390 Hz/3,200 Hz
Window mode Yes
Focus Manually, motorised or automatically*
Dynamic range 14 bit
Integration time (1 ... 20,000) μs in increments up to 1 μs
Rotating filter wheel* Up to 5 positions
Rotating aperture wheel* Up to 5 positions
Multi integration time* Yes
Interfaces GigE, 2× CAMLink*, USB, HDMI*
Trigger 2 IN/2 OUT, TTL
Tripod adapter 1/4 " + 3/8 " photo thread, 2× M5
Storage and operation temperature (-40 ... 70) °C, (-20 ... 40) °C
Protection degree IP54, IEC 529

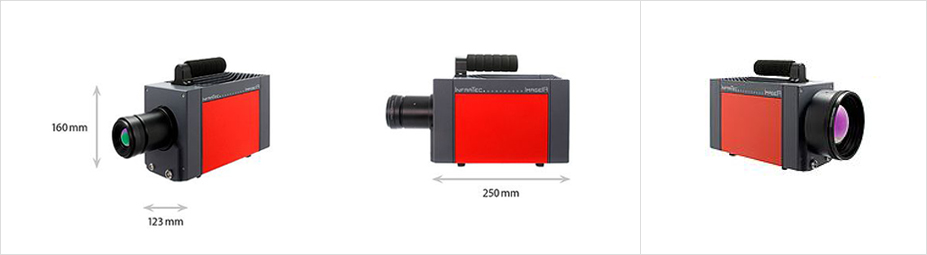

Dimensions, weight (244 × 130 × 160) mm, 4.0 kg
