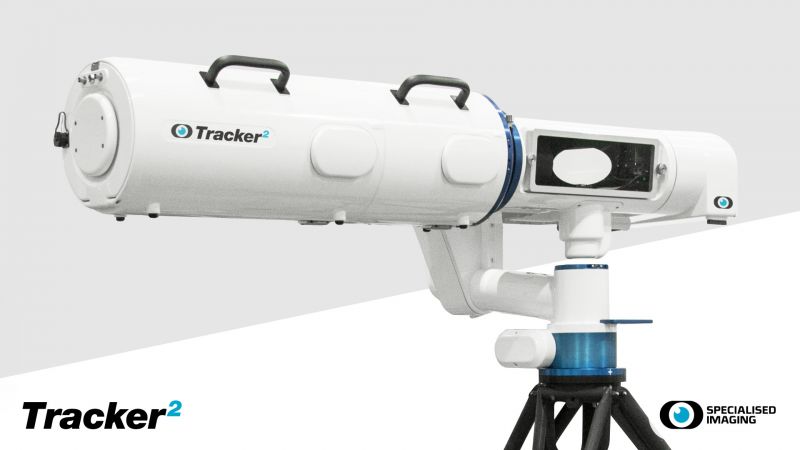

Tracker 2 – Flight Follower System

Built-in multiple triggers for real-time tracking and full remote control of the sturdy mount contribute to the natural evolution of this award-winning system.

Application
  • Ballistics
  • Impact Studies
  • In-flight behavior
  • Sports & Science

Features
  • Sturdy, motorized, remotely adjustable mount
  • Ergonomic design for ease of handling
  • Low profile layout

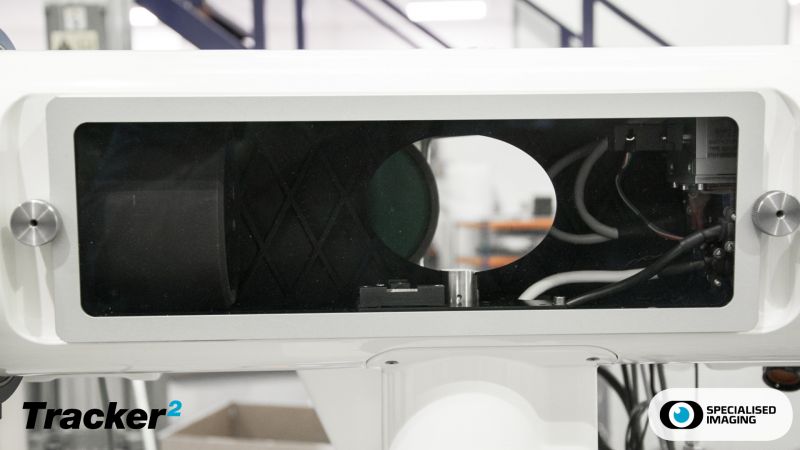

  • Low inertia Silicon Carbide mirror
  • Improved motor drive for faster mirror
  • Acceleration
  • Motor accuracy of better than 0.22 over full scan
  • Scanning ratio from 0.1 to 100
  • Choice of integrated high speed video camera – system with inbuilt DC supply for cameras
  • 8 trigger input as standard
  • 3D analysis available with 2 systems
  • Custom control and analysis software
  • Control via standard 1Gbps Ethernet link
  • Optional multi trigger modules for up to 32 triggers

Specification
MIRROR
Type

Optical flat elliptical Silicon Carbide Mirror

Size (HxW) mm

135x85x2

TRACKING

Scan Ratio (SR) 0.1 to 100 (defined as the ratio of projectile velocity/stand-off distance)
Scanning range (Max.)

-50º to +50 º /-60º to +60 º

Scanning Distance

>=2x standoff distance (distance from the line of flight to Tracker2)

Scanning Accuracy

±0.2º (-45° to +50°)

Positional Accuracy ±0.02º
Calibration

Not required

Projectile Velocity

SR x Standoff distance

Projectile Drag

0 to 100 m/s/m

Acceleration Angle

1° - 5° depending on scan rate
(defined as the angle required to accelerate the mirror from rest to full scanning speed)

OPERATING MODES
Fixed Velocity

Single trigger using known velocity

Velocity

The scan is corrected using the measured velocity from at least 2 of the 8 available detector inputs.

Position

The scan position is corrected from the detector inputs. Known velocity is assumed.

Drag

The scan is corrected using the measured velocity and drag from at least 3 of the 8 available detector inputs.

Pre-defined profile

Programmable Velocity Vs Time curve. Triggered using single trigger.
Used for non-linear projectile trajectories.

Advanced User Functions

Specialised Imaging is prepared to customise modes of operation to user requirements.

Skewed Geometry

Allows non perpendicular operation

CONTROL UNIT
System Clock

10MHz quartz crystal controlled

Trigger Jitter

<1us

INPUT/OUTPUT SIGNALS
Detector In

BNC

Trigger In

Rising or Falling Edge pulse
Make/break

Camera Trigger

TTL positive pulse

Communication Interface

Data and Command transfer via 1Gbps Ethernet
Cable length 100m (standard). Other lengths available 1000FX fibre optic Ethernet link (up to 2Km) - optional

Software

Custom software compatible with Microsoft Windows Operating Systems for control and data archiving in various file formats

ENVIRONMENTAL
Storage temperature

-10°C to +74°C

Operating temperature

-5°C to +50°C

Warmup Period

Not Required

Humidity 10 - 90% RH non-condensing
Vibration shock

10 - 40Hz Max. 10g in any direction

EMC Meets all EC harmonized standards
